*MEC produces wide range of rolling elements according to DIN 5402 / ISO 3096 standard, in Bearing Steel (Grade SAE 52100/100Cr6/SUJ2) and Stainless Steel (Grade AISI 302/304/316)         * MEC produces wide range of rolling elements according to DIN 5402 / ISO 3096 standard, in Bearing Steel (Grade SAE 52100/100Cr6/SUJ2) and Stainless Steel (Grade AISI 302/304/316)

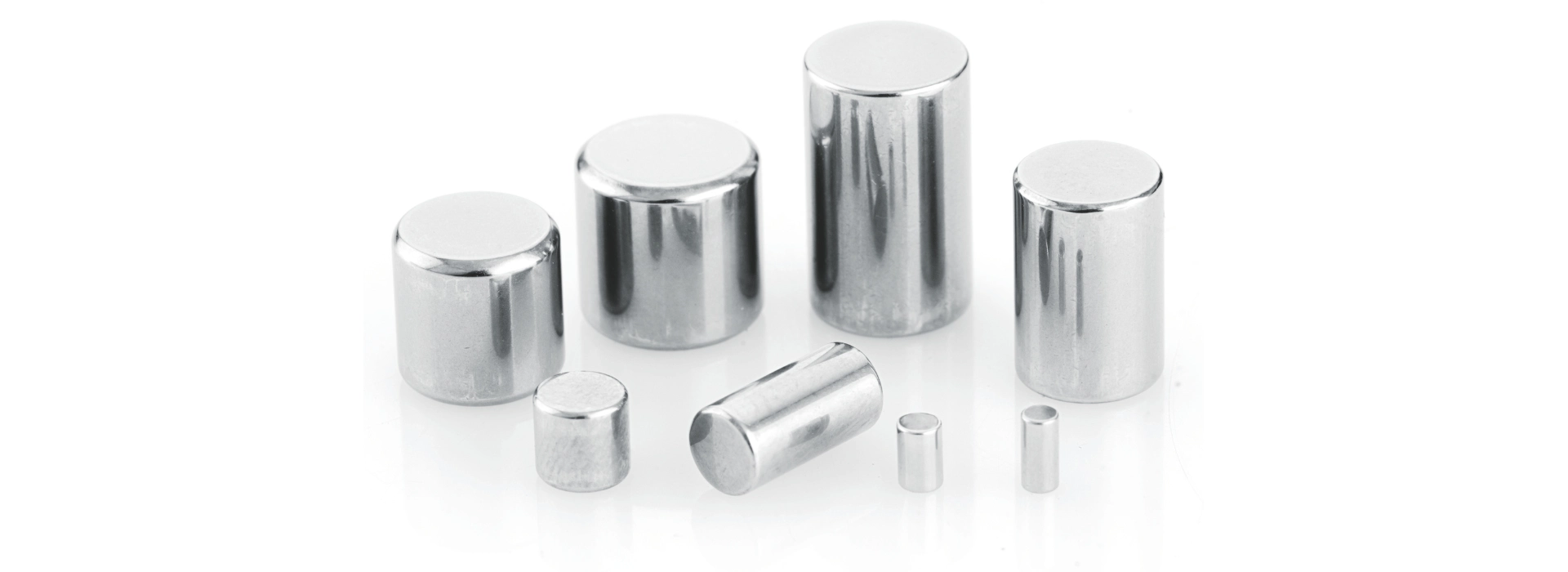

Cylindrical Rollers

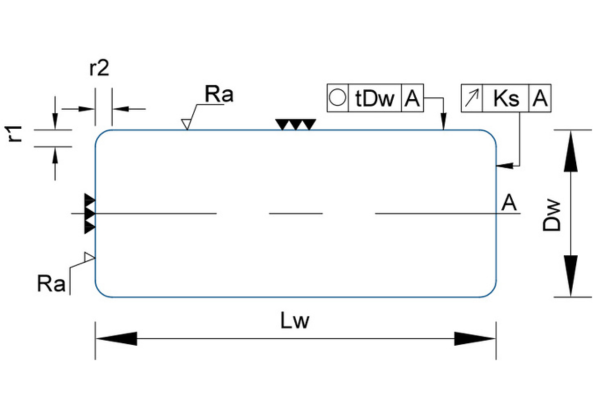

BPM/TR

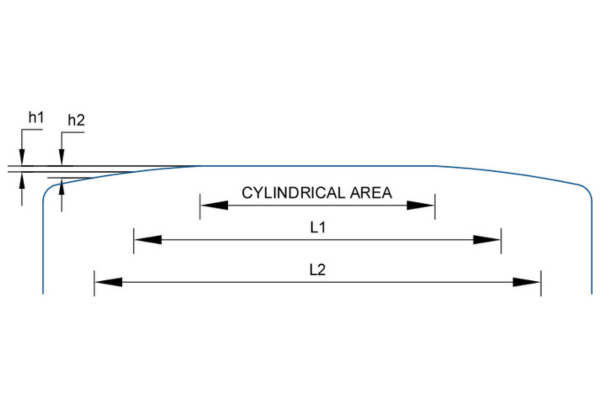

BPM/ZB

Technical Data - Cylindrical Rollers
STANDARD TECHNICAL DATA

(For anything tighter or special please contact us)

CYLINDRICAL ROLLERS - Installed Capacity 50 Million pieces per Year
BPM Diameter: from 3 mm to 20 mm Length: from 3 mm to 40 mm
GRADE DIAMETER
TOLERANCE
(μm)		 SORTING
GROUPS
(μm)		 ROUNDNESS
DEVIATION
(μm)		 ROUGHNESS (μm) ENDS RUNOUT
(μm)		 LENGTH
TOLERANCE (mm)
SURFACE ENDS
G1 +0-10 2 1.0 0.08 0.20 0.006 +0.000-0.030 mm
GN +0-10 2 1.0 0.10 0.010 +0.000-0.030 mm
CYLINDRICAL ROLLERS (ZB PROFILE) - Installed Capacity 15 Million per Year

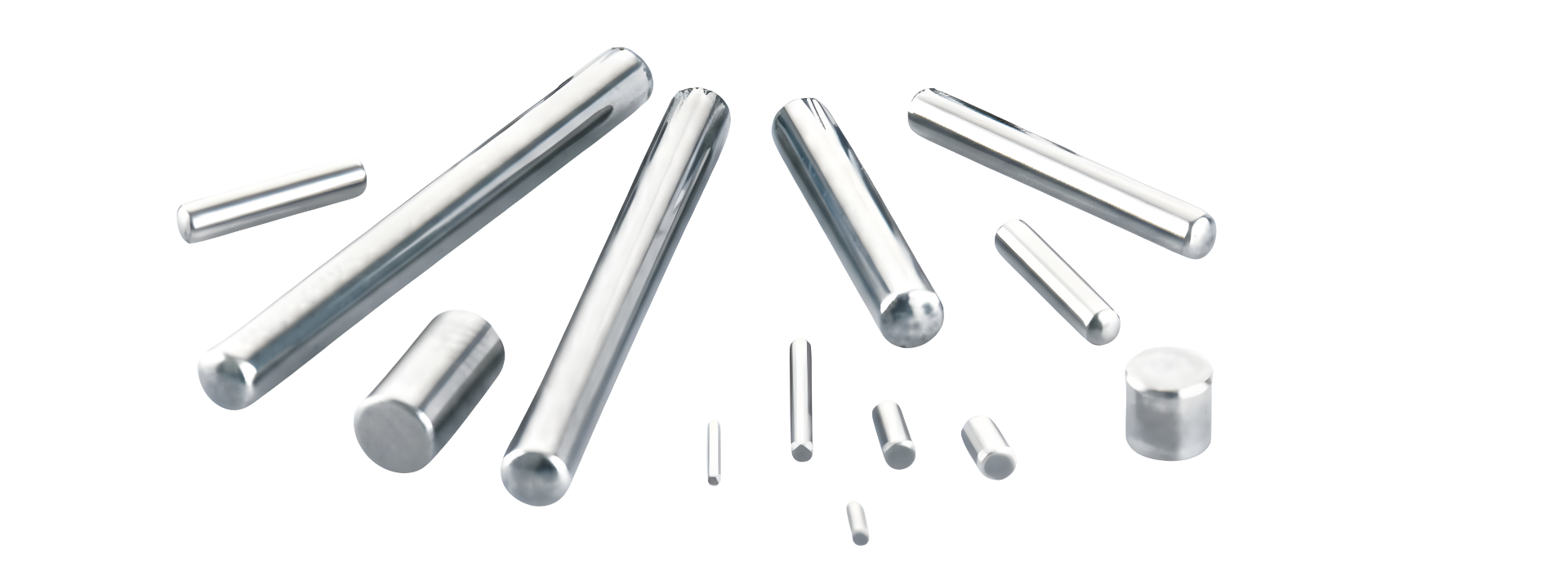

Needle Rollers

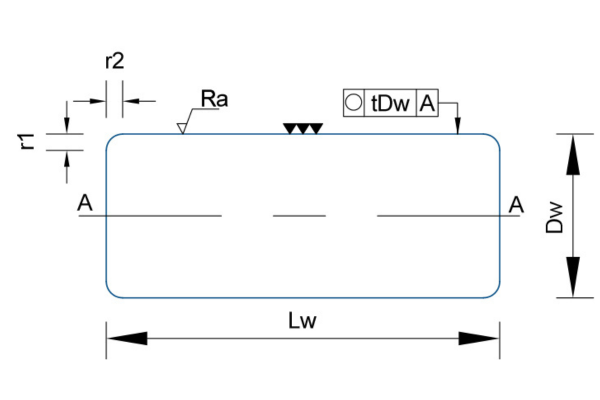

BP/NRB

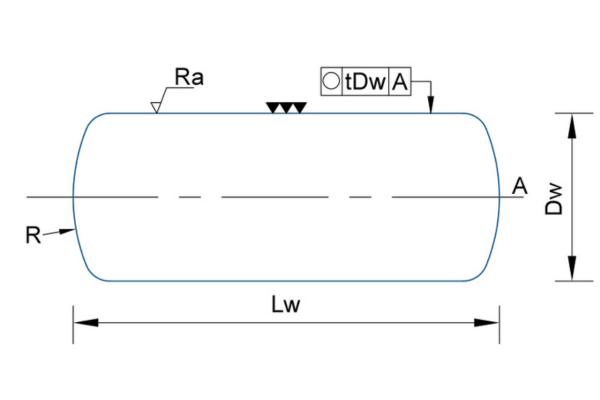

BR/NRA

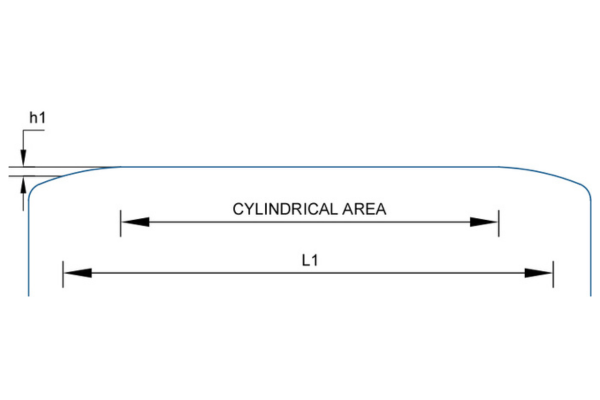

ED

Technical Data - Needle Rollers
STANDARD TECHNICAL DATA

(For anything tighter or special please contact us)

NEEDLE ROLLERS - Installed Capacity 2500 Million Pieces per Year
BR/BP Diameter: from 1.00 mm to 6.0 mm Length: from 2.80 mm to 49.80 mm
GRADE DIAMETER
TOLERANCE
(μm)		 SORTING
GROUPS
(μm)		 ROUNDNESS
DEVIATION
(μm)		 SURFACE
ROUGHNESS Ra
(μm)		 LENGTH (mm) LENGTH
TOLERANCE h13
(mm)
G2 +0-10 2 1.0 0.10 - 6 +0-0.180
6 10 +0-0.220
10 18 +0-0.270
18 30 +0-0.330
G5 +0-10 5 2.5 0.20 30 50 +0-0.390

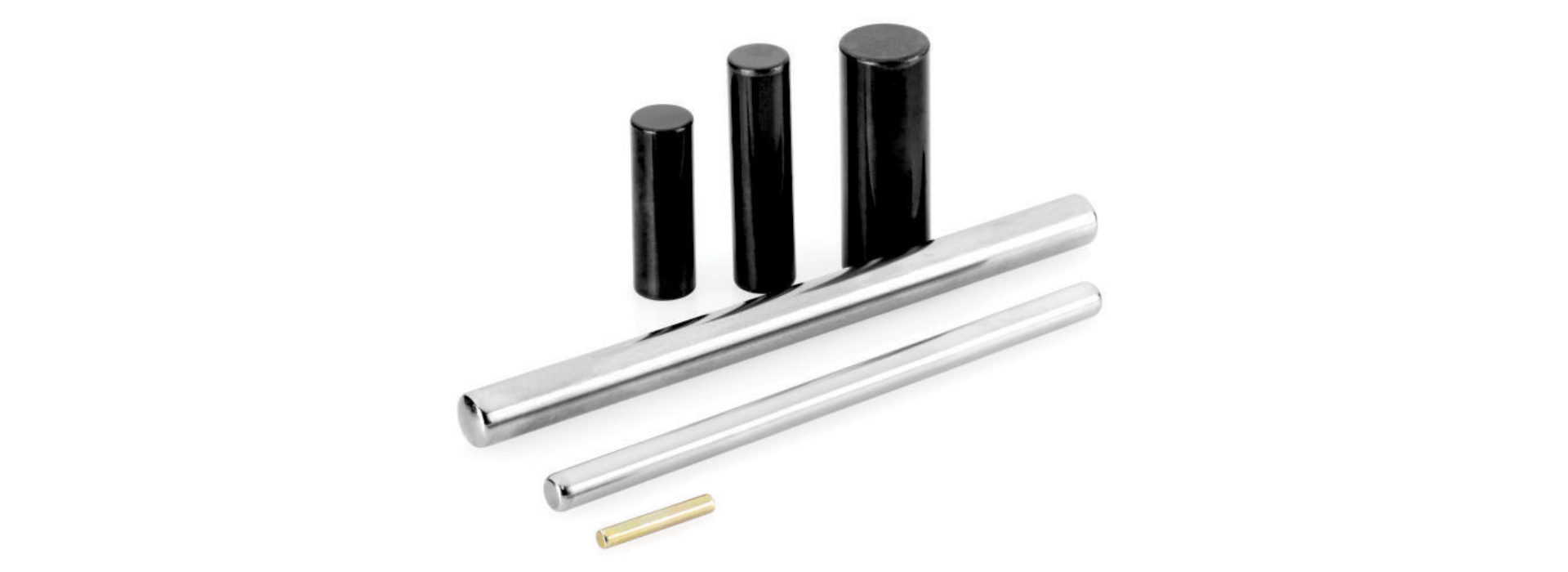

Cylindrical Pins

Technical Data - Cylindrical Pins
STANDARD TECHNICAL DATA

(For anything tighter or special please contact us)

CYLINDRICAL PINS
Cylindrical Pins Diameter: from 2.00 mm to 10.0 mm Length: from 6.00 mm to 70 mm
Cylindrical Pins can be used as Dowel Pins, Guide Pins, Stopper Pins, Axle Pins with or without specialized coatings (Black Oxide/ Non-Ferrous). They are entirely customized as per customer specifications and can be produced in small volumes.
High Engineering Quality Rollers @ Reasonable Prices
  • 2000+ sizes available in range giving us unmatched flexibility
  • 1000+ sizes available in ready stock for immediate deliveries
  • Very Quick Response time from our team
  • Efficient & Reliable Deliveries right up to your Location
  • Can supply customized Sizes even in small volumes
  • Detailed Quality Reports along with every consignment
  • More than 25 years’ experience in International Trade
